RAID Trailer

Rapid Attack / Interface Defence

Tank, pump and valving on one trailer your UTV can pull up trails, onto fire guards and around structures. Five deployment modes from a single four-valve manifold, and it refills itself from any pond or creek.

Request a quote Deployment & valve guide (PDF)

Tank

185 US gal

700 L

Pump

Honda 1.5"

High-pressure

Loaded weight

Under 2,500 lb

UTV towable

Hose

1.5" & ¾"

2 × 50' of each standard · custom lengths available

Deployment

Five ways to put water on the fire

Set four valves, connect the accessories, and adjust pressure with the engine throttle. Every mode below uses the same trailer.

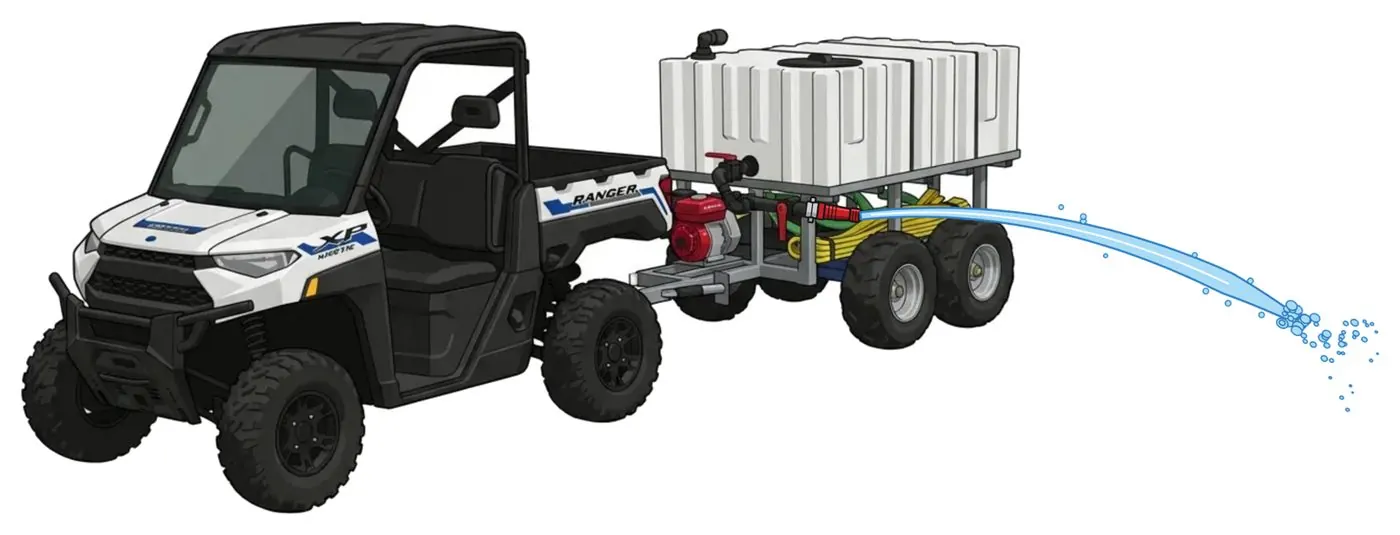

Illustration: UTV driving with the RAID Trailer spraying a wet line

Pump and drive

Lay a wet line to slow fire advance in vegetation, or knock down a long stretch of brush fire while moving.

1.5" forestry nozzle on the outlet · drive slowly, keep a safe distance

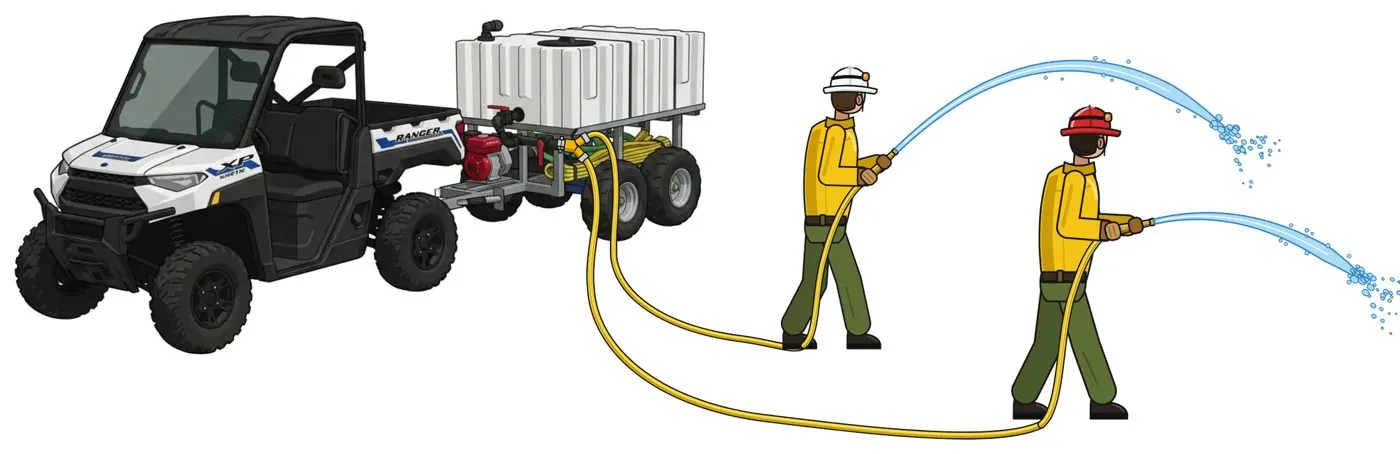

Illustration: two firefighters on handlines from the RAID Trailer

Dual handline

Two firefighters working together to control fire spread.

Y adapter on the outlet · two ¾" forestry lines with nozzles

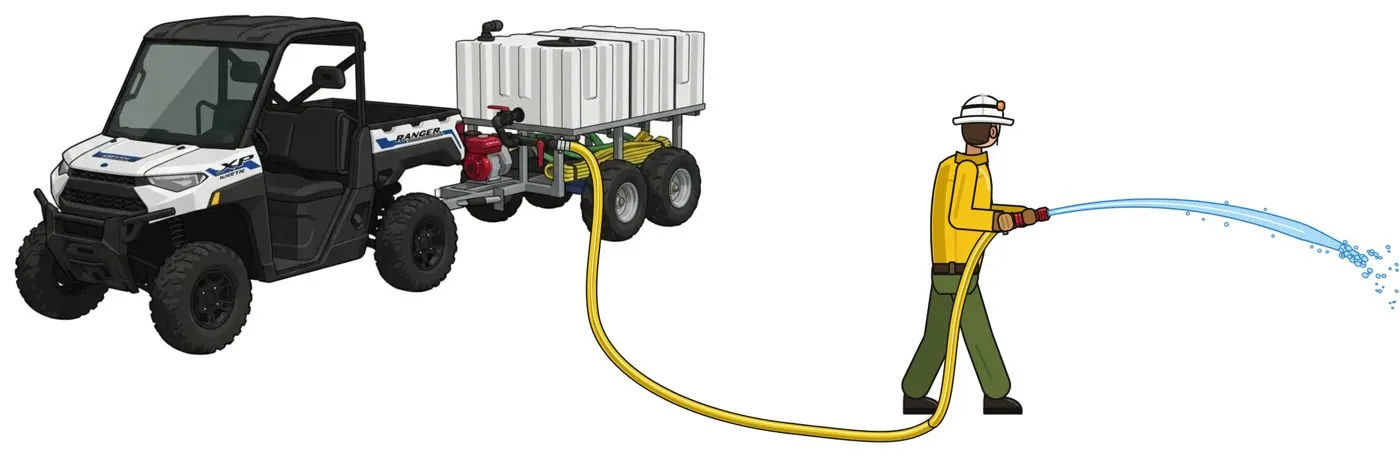

Illustration: one firefighter on a 1.5-inch handline

High-volume handline

Hit a fire directly with a lot of water, fast.

1.5" forestry hose and nozzle on the outlet

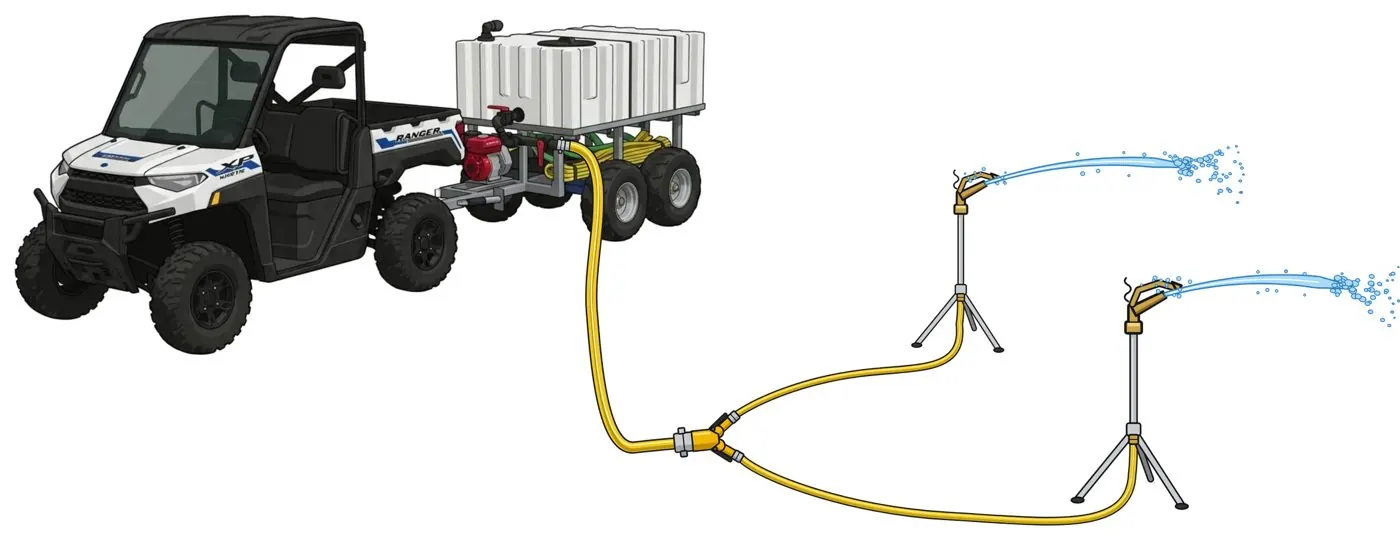

Illustration: hose split to two tripod sprinklers

Extended reach

Work a fire or protect a structure well away from where the trailer can park.

1.5" line out to a Y · ¾" lines to nozzles or structure-protection sprinklers

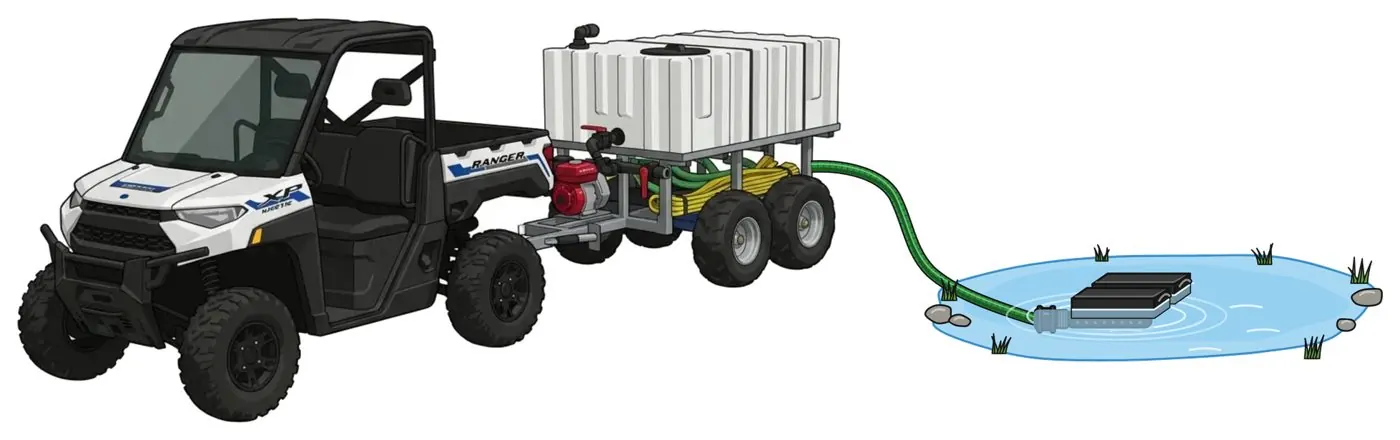

Drafting

Refill the onboard tank, or run extended operations straight from a pond, creek or portable tank.

1.5" suction line on the draft port · pairs with the 1.5" Float Intake & Foot Valve

The Honda high-pressure pump is not a trash pump. Draft only from clean sources, through a floating intake or other protection.

Valve quick reference

The same chart printed on the trailer's guide card.

Valve	Pump & drive	Dual handline	High volume	Extended reach	Drafting
A · Tank suction	Open	Open	Open	Open	Closed
B · Tank fill	Closed	Closed	Closed	Closed	Open*
C · Outlet	Open	Open	Open	Open	Closed*
D · Draft	Closed	Closed	Closed	Closed	Open

* Drafting straight to the outlet without refilling the tank: B closed, C open.

RAID Trailer showing tanks, Honda pump and valving

Put a RAID Trailer in your fleet

Tell us your UTV and how you plan to use it. The standard loadout includes two 50' lengths each of ¾" and 1.5" forestry hose, and we can build custom lengths to suit your terrain.

Request a quote Spec sheet (PDF)
